| PRODUCT DESCRIPTION | |
|---|---|

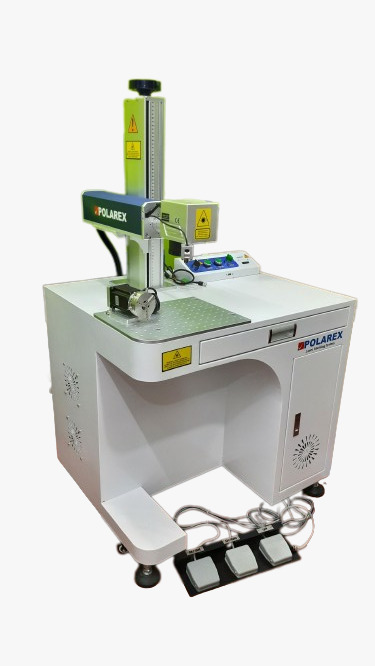

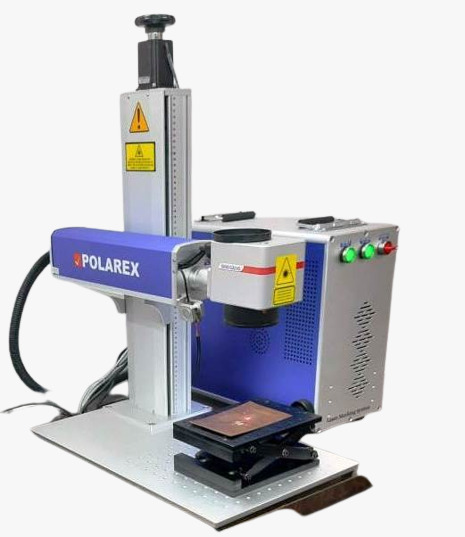

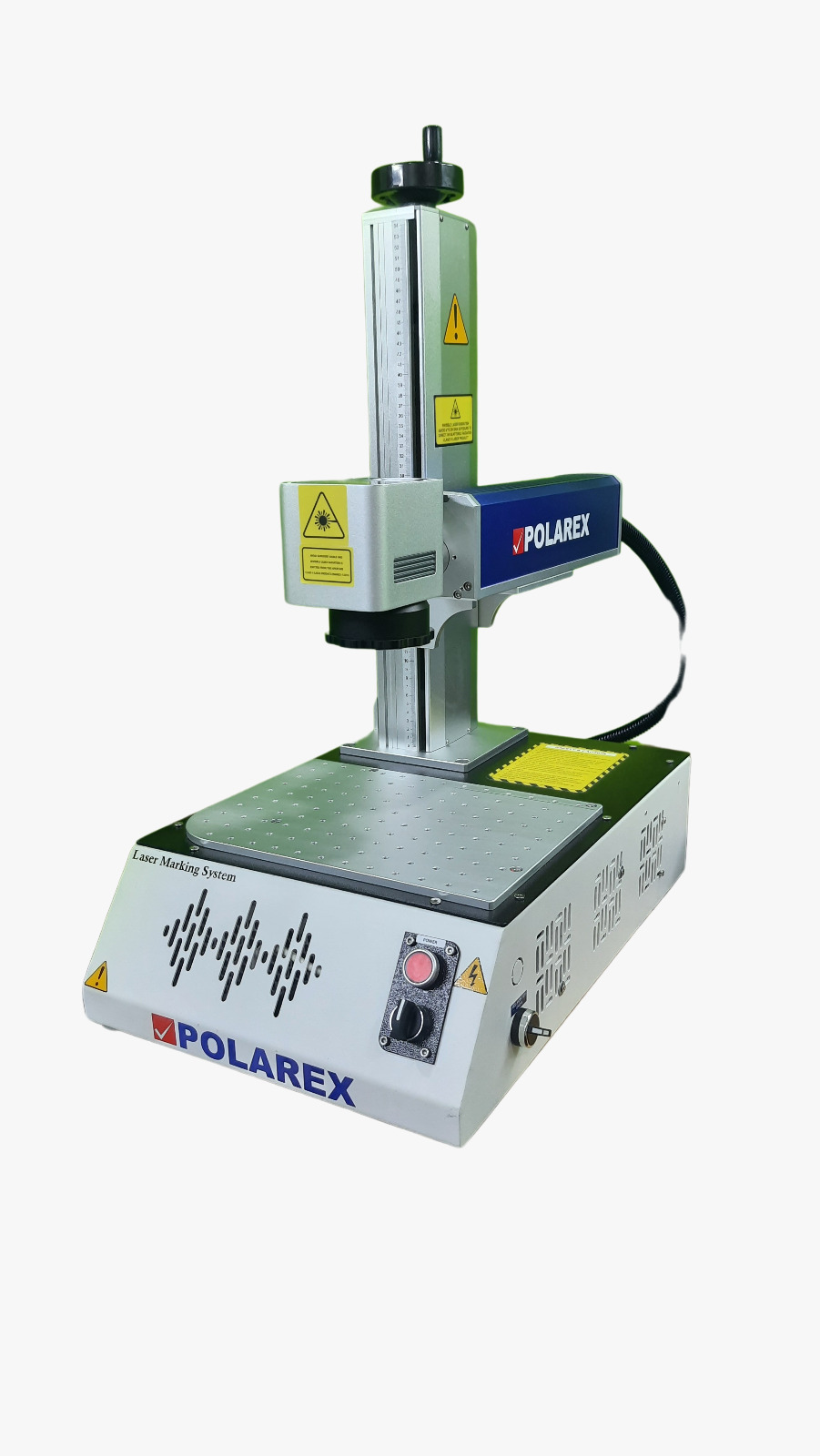

| BRAND | POLAREX |
| Model | PS20WTTM, PS30WTTM, PS60WTTM, PS100WTTM |
| Make | INDIA |
| Power | 20 watts, 30 watts, 60 watts and 100 watts |
| Laser wave length | 1064nm |
| Laser Type | Pulsed |
| Laser Source | MAX, Raycus, JPT & IPG |
| Marking Area | 100 x 100 mm (optional 150 x 150mm and 200 x 200mm availabel) |
| Pulse width | 60ps |
| Marking Speed | 7000mm/s or 10000mm/s |
| Min line width | 0.3 mm |
| Min Character | 0.15m |
| Repeat precision | 10 urd |

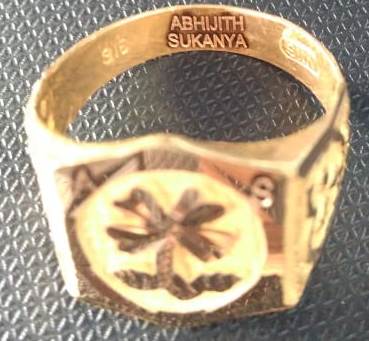

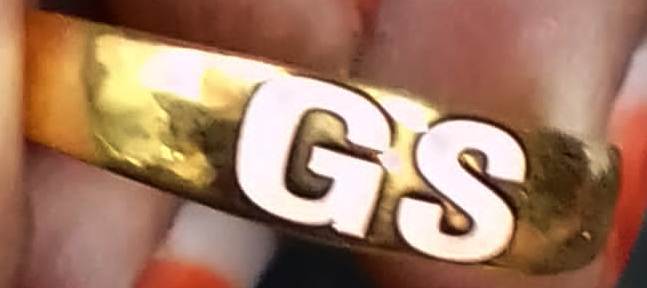

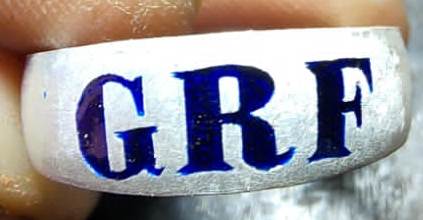

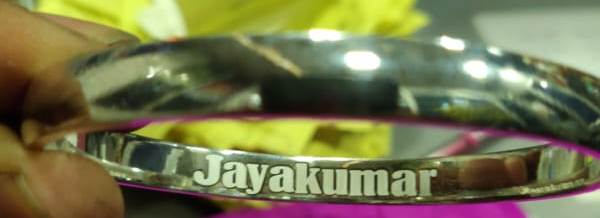

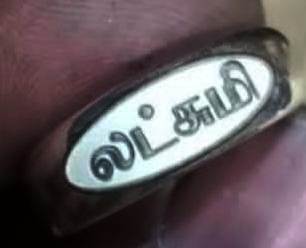

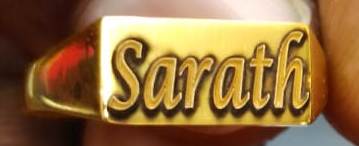

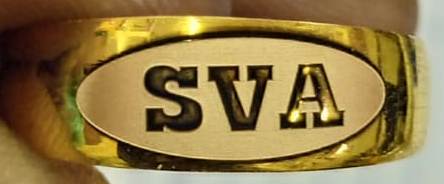

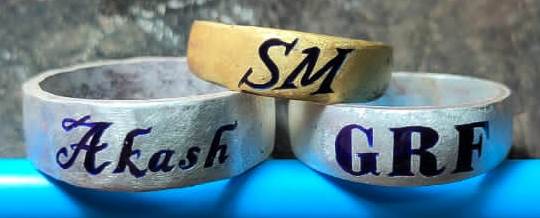

| Motorized Rotary for Ring & Bangles Marking | Available on request |
| Power Supply | 220V AC / 50Hz |
| Overall Power Consumption | 400 to 800 watts |
| Warkfng Depth | 0.5mm(20 watts), 1.3mm (60 watts), 3mm (100 watts) |

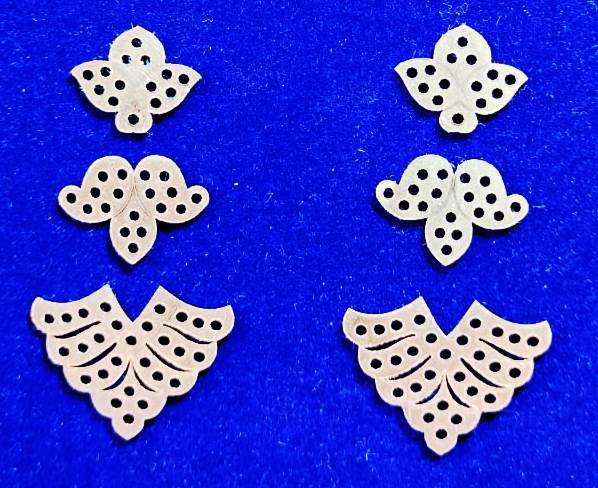

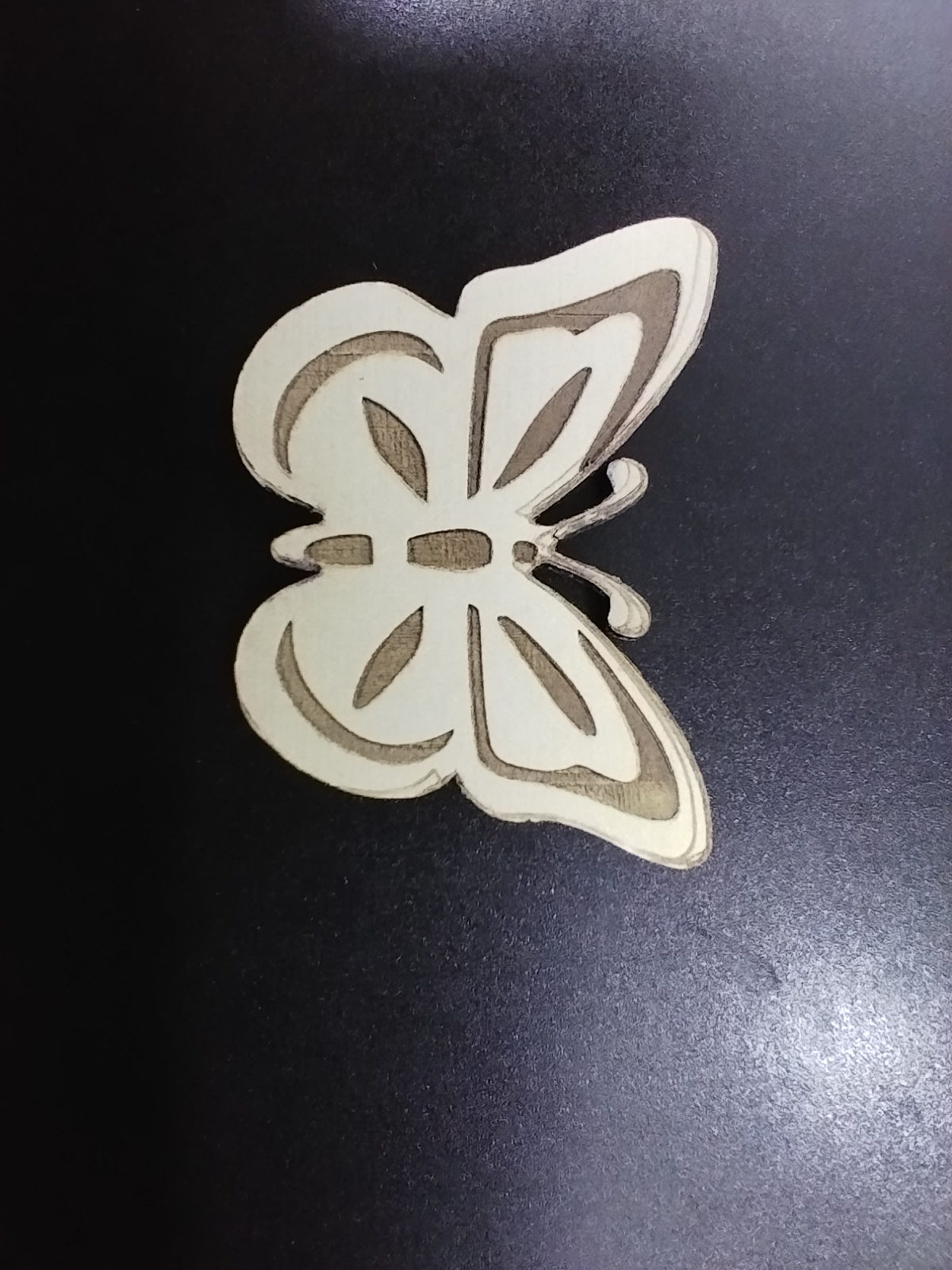

| Cutting Depth | 0.3mm(20 watts), 0.6mm (60 watts), 1.3mm (100 watts) |
| Supporting Computer System | Win - XP/ Win-7 /Win-10/ Win 11 |
| Control interface and Cooling System | USB & Air |
| Life of Laser Source | 1,00,000 hours |
| Weight of the machine | 40 Kgs (Approx) |
