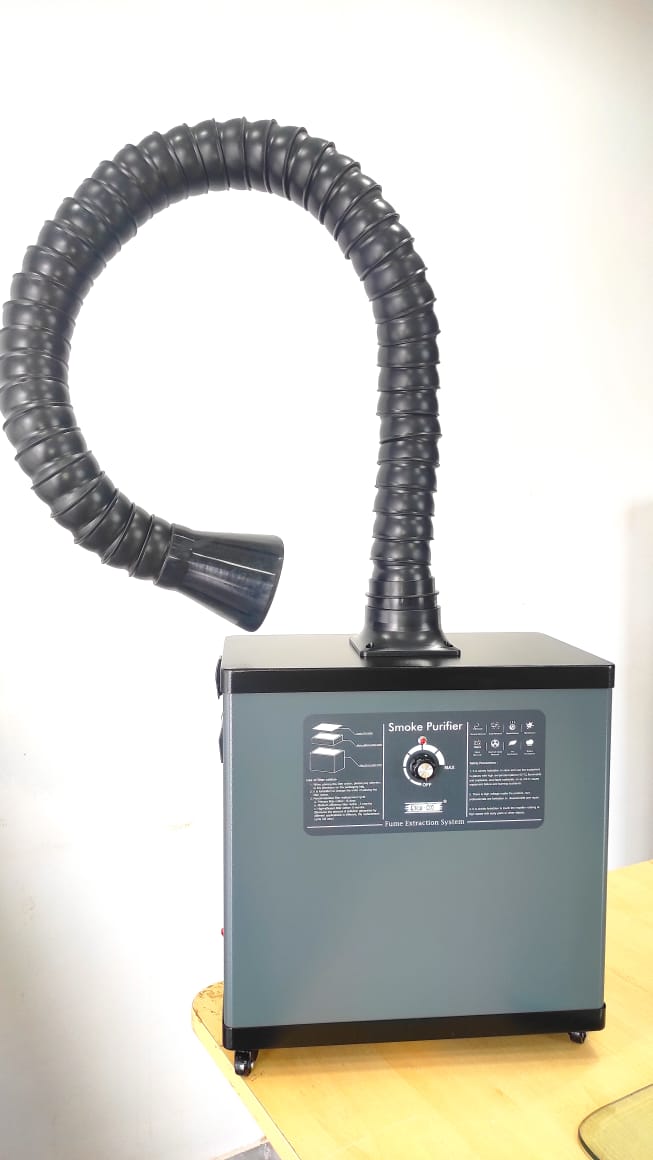

Product 1

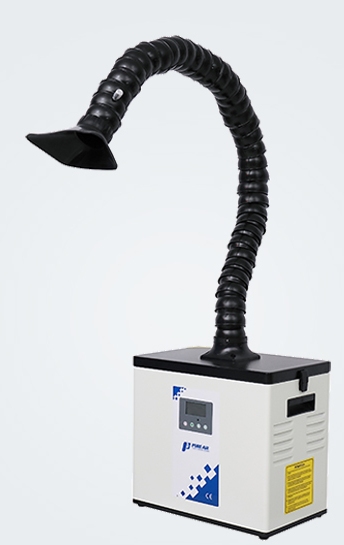

Product2

FEATURES AND BENEFITS

Model PA-300TS-IQ PA-300TD-IQ PA-500TS-IQ PA-500TD-IQ
Maximum Air Volumn 300m^3/h 2*150m^3/h 500m^3/h 2*250m^3/h
Maximum Negative Power 2500Pa 3200Pa
Input Power 0.2KW 0.35KW
Voltage Frequency 220V, 50HZ & 110V, 60HZ
F5 Primary Filter Cotton (180*350*20mm)
Filter Type F8 Medium Efficiency Filter (180*350*50mm)
High Efficiency Filter (190*360*210mm)
Filtration Efficiency >99.9% @0.3 Microns
Filteration Accuracy >0.1 Microns
Working Noise 55dBA 60dBA
Machine Size 250*430*412mm 310*520*515mm
Machine Net Weight 15kg 17kg 22kg 24kg
Interface Diameter 50mm/75

Machine Accessories: Fume Extractor PSFE-20

Technical Specification

-Maximum Air Volumn: 350 m3/hr

-Filter efficiency: 0.3um 99.97%

-Purification method: Quadruple filtration

-Speed Mode: Potentiometer tuning

Silent Features

-Single Fume Inlet

-150W brushless blower for dust collection and fume filtration

-Suitable for laser marking, engraving, scribing, coding, manual soldering, dipping tin, medical laser processing, soldering etc.

-Voltage frequency: 220V,50Hz

-Power Consumption :180W

Working noise: <+ 55dB
