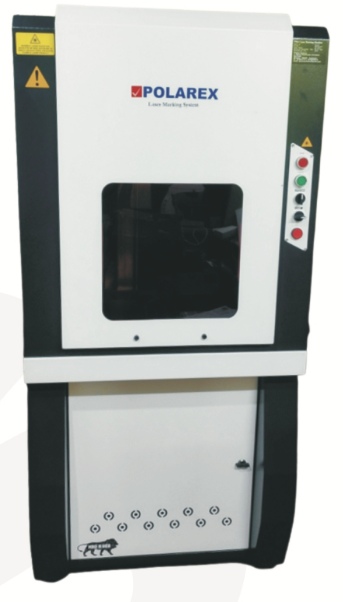

| PRODUCT DESCRIPTION | |
|---|---|
| BRAND | POLAREX |
| Model | PS60WTTM and PS100WTTM |
| Make | INDIA |
| Power | 60 Watts and 100 Watts |
| Laser Wave Length | 1064nm |
| Laser Type | Pulsed |
| Laser Source | Raycus, JPT, IPG |
| Marking Area | 100 x 100 mm (Optional 150 x 150mm and 200 x 200mm available) |
| Pulse Width | 60us |
| Marking Speed | 7000mm/s and 10000mm/s |
| Min Line Width | 0.3mm |
| Min Line Width | 15mm |
| Repeat precision | 10 urd |

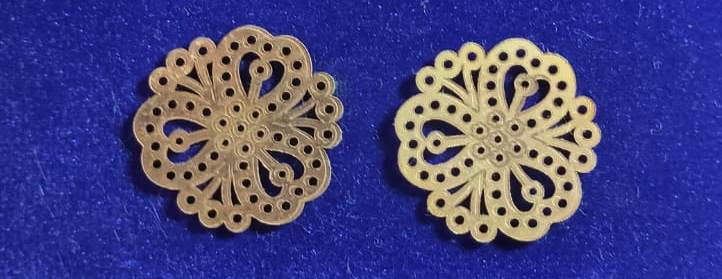

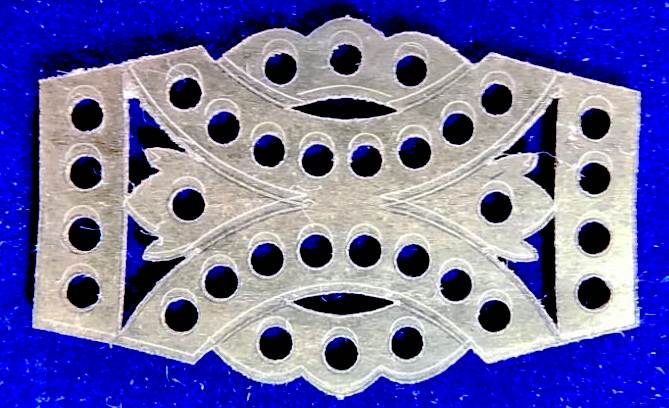

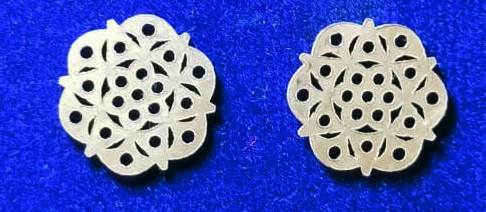

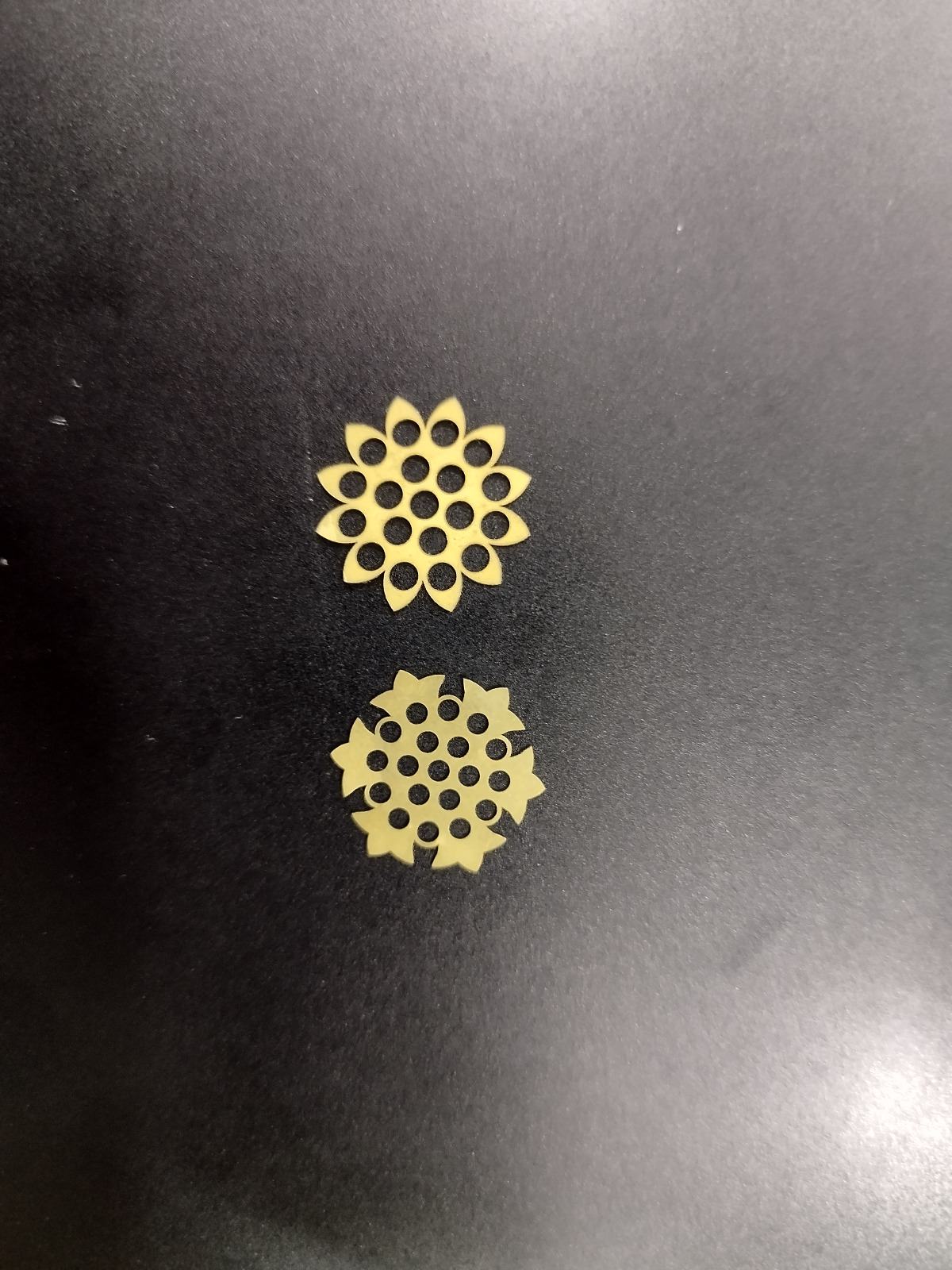

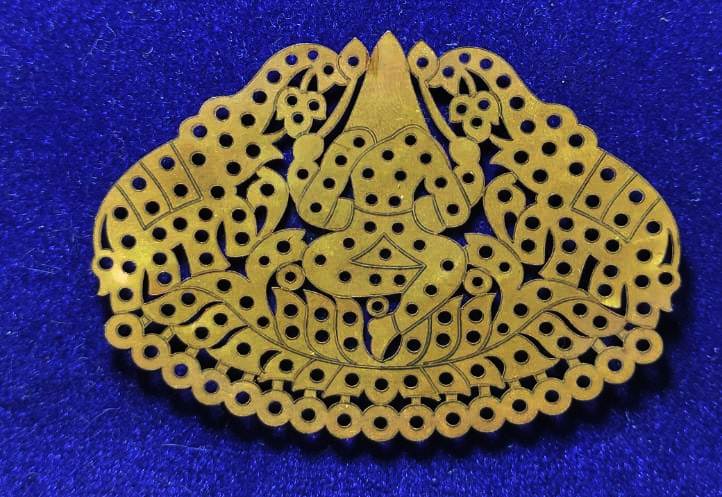

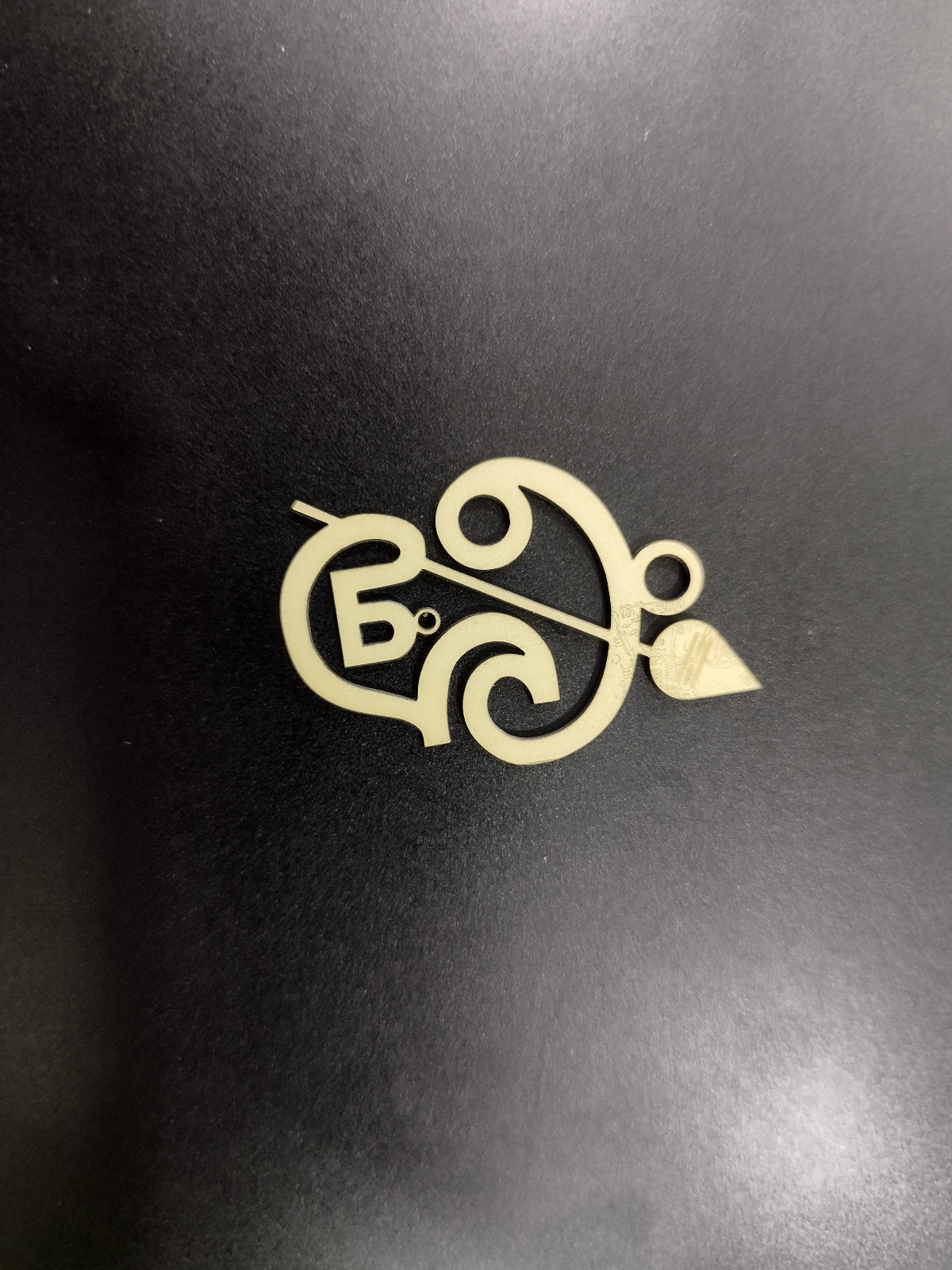

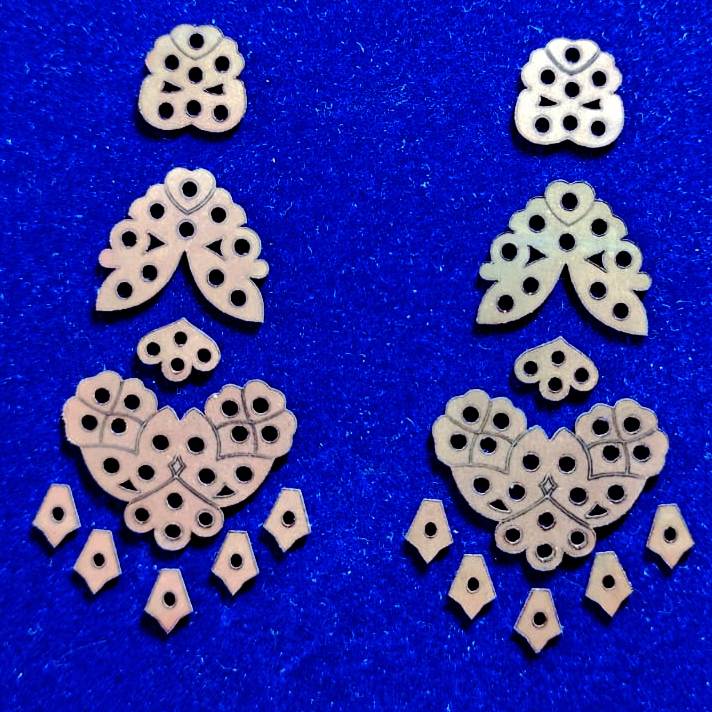

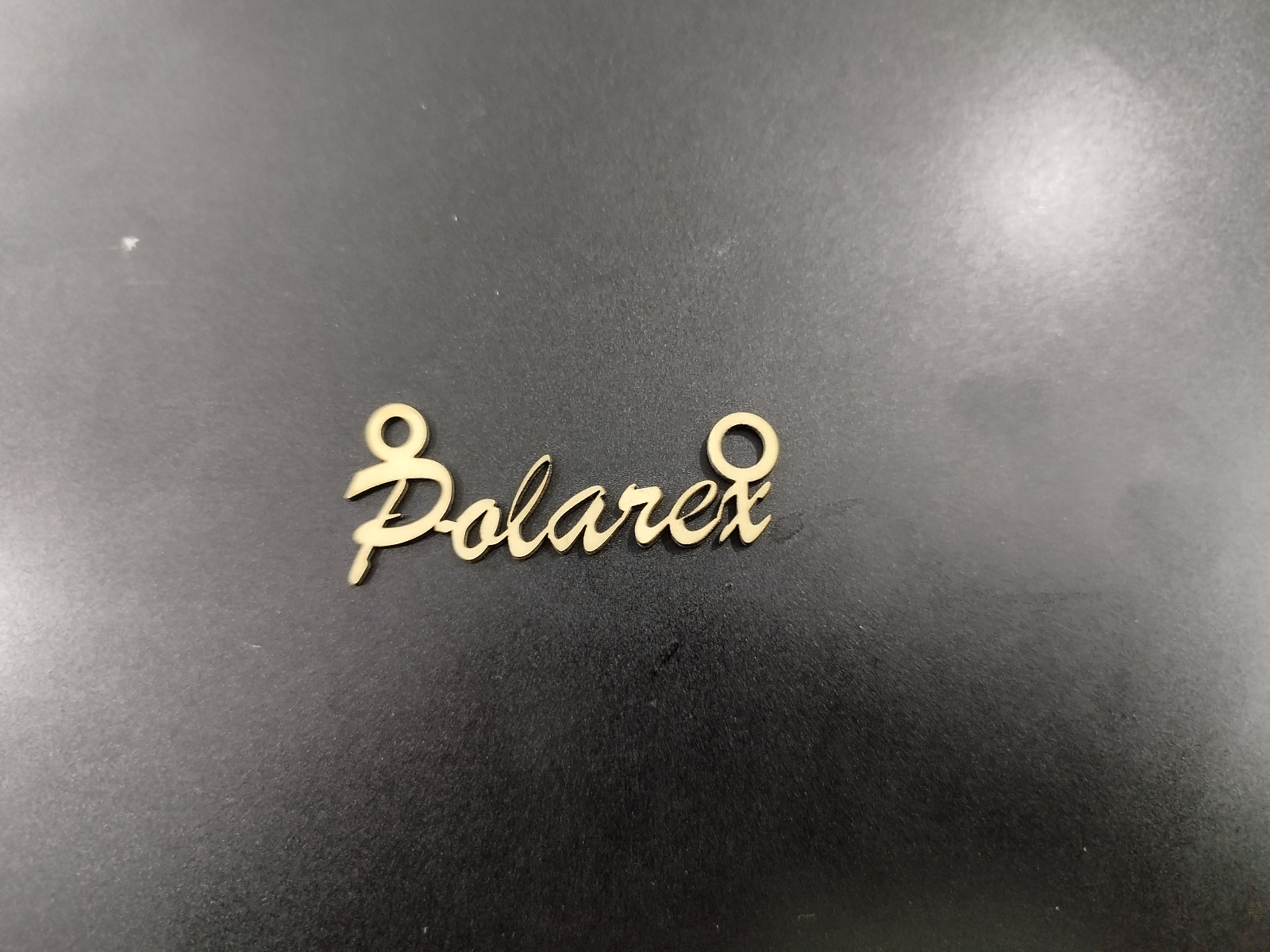

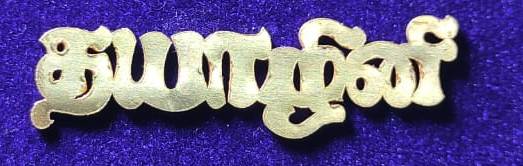

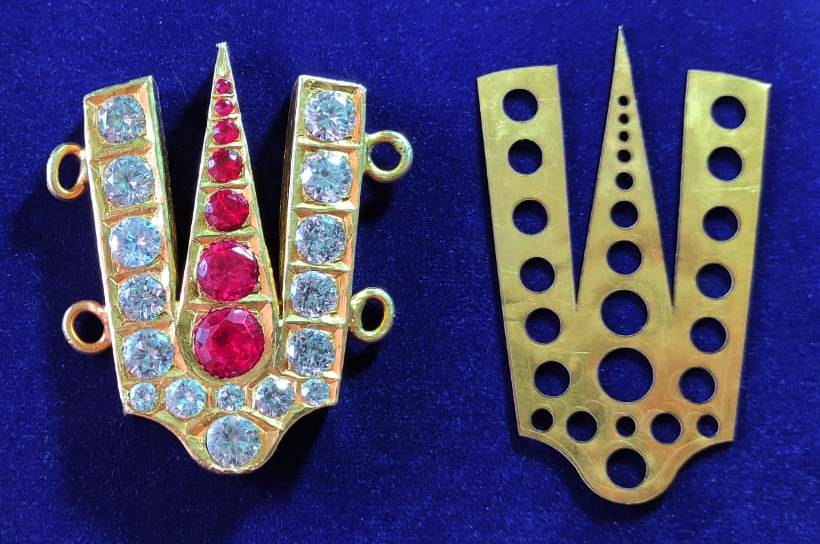

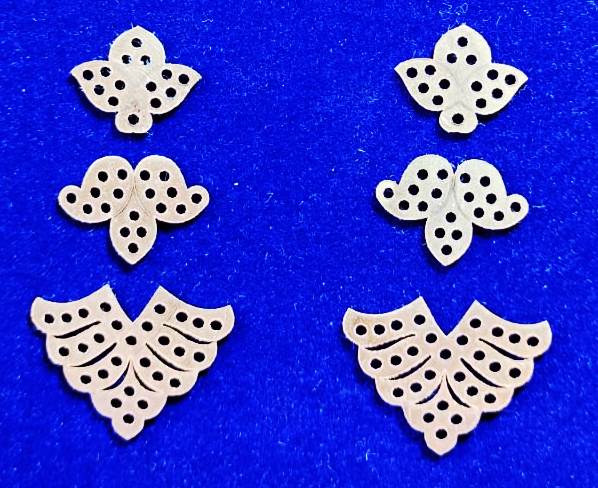

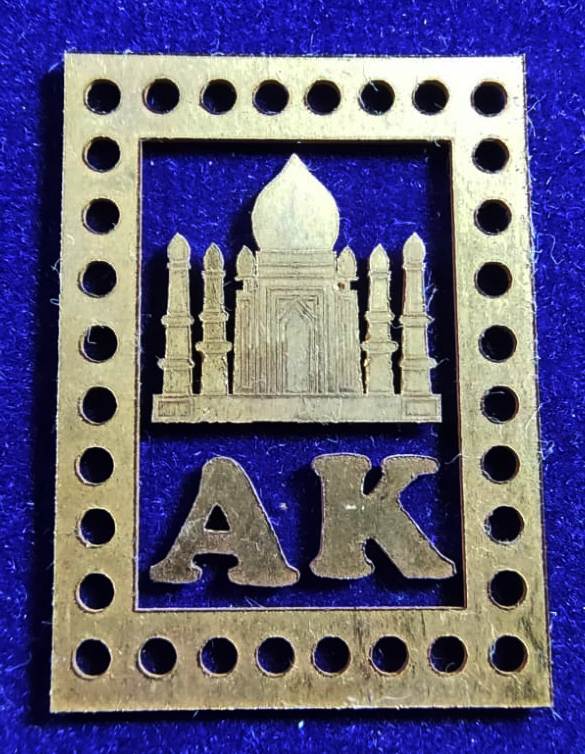

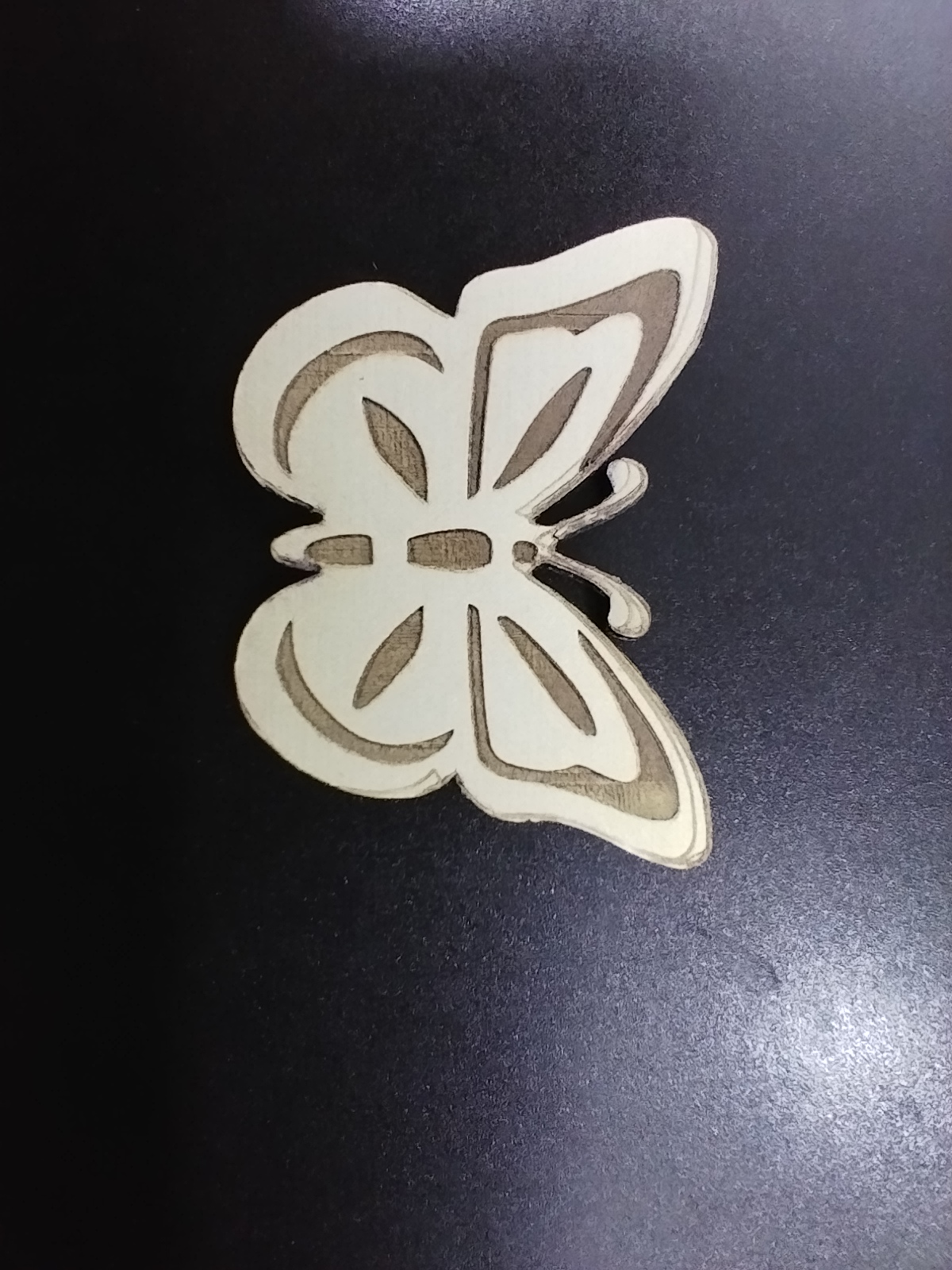

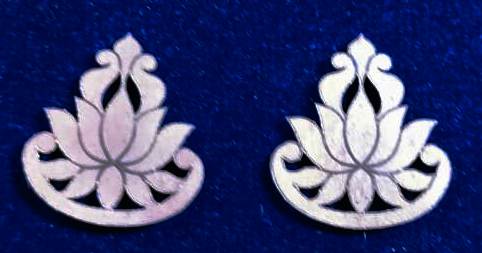

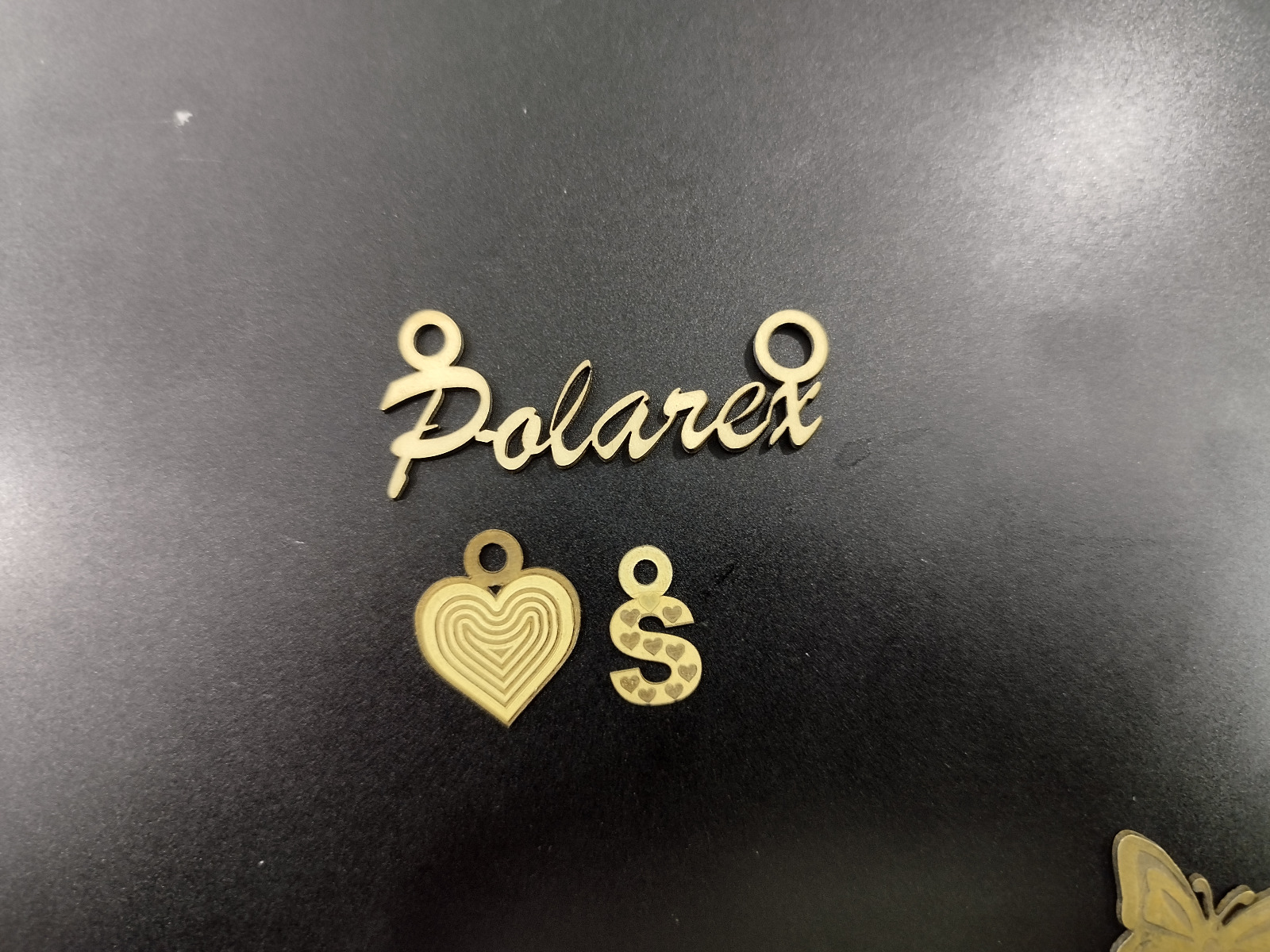

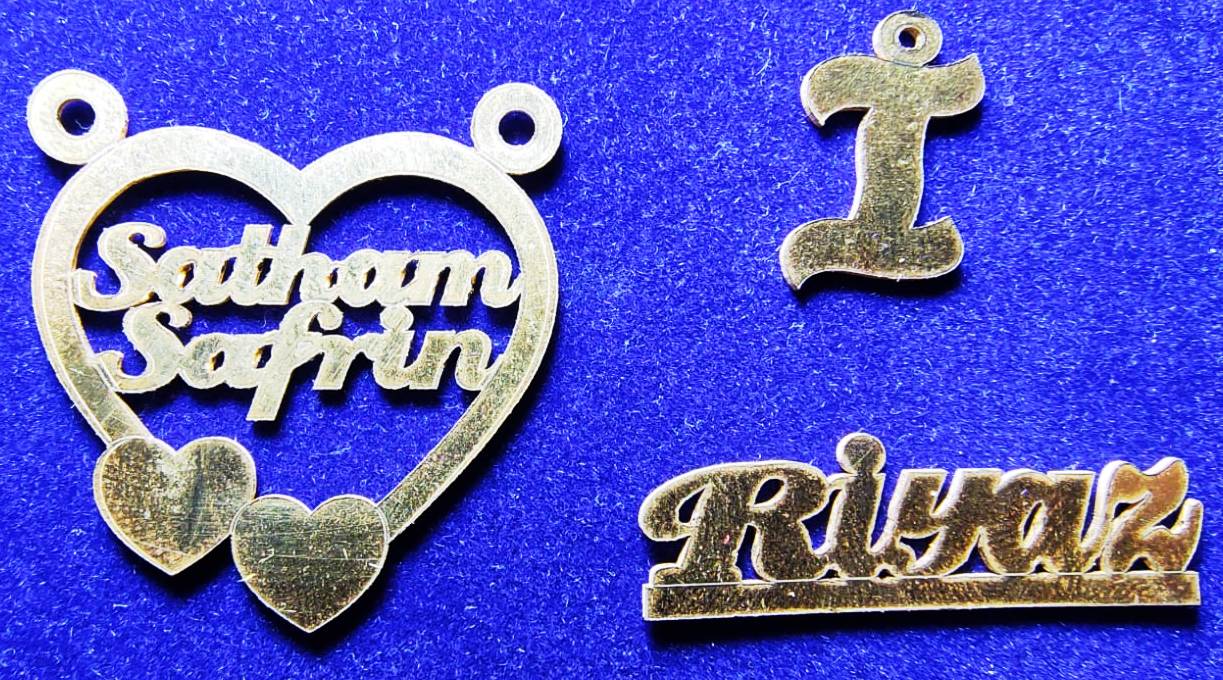

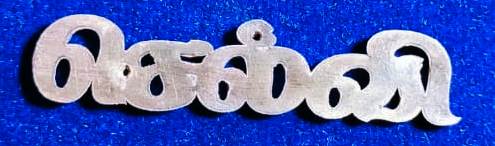

| Motorized Rotary for Ring & Bangles Marking and Plate Fixture for Gold Cutting | Available |
| Power Supply | 220V AC / 50Hz |
| Overall Consumption | 400 to 800 watts |
| Marking Depth | 1.3mm (60 watts), 3mm (100 watts) |
| Cutting Depth | 0.6mm (60 watts), 1.3mm (10 watts) |
